Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location : Canada, United Kingdom, United States, Italy, France, Germany, Australia
Condition : New
Brand Name : HUAQI
Place of Origin : Shandong, China
Type : Mini Dumper
Moving Type : Crawler Loader
Dimension(Long * Breadth * High) : 2112 x 832 x 1344 mm
Warranty : 1 Year
Machine Weight : 360 kg
Hydraulic Cylinder Brand : Bosch Rexroth
Hydraulic Pump Brand : KYB
Hydraulic Valve Brand : BOXINHUASHENG
Engine Brand : Briggs & Stratton
UNIQUE SELLING POINT : Easy Opreation
Power : 6.5 hp
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Marketing Type : Ordinary Product
Warranty of core components : 1 Year
Core Components : Engine, Pump, Bearing
Product name : Mini Track Dumper
Keyword : Crawler Mini Dumper
Max. Operating Mass : 860 kg
Rated power : 6.5 HP
Startup : Manual / Electric start
Grade ability : 15 degree
Driving : Hydraulic
Engine : EPA
Brand : HUAQI
Hopper Volume : 270L
Packaging Details :
* Wooden box with Standard Export Packing
* Film plastic and wooden crate with manufacturer logo outsides.
* All of the productions are inspected carefully by QC before delivery.
Port : Qingdao,Shanghai,Guangzhou
Supply Ability : 1000 Set/Sets per Month
Price : $2,235.00/sets 1-9 sets
MOQ : 1 unit
Parameter | Value |
Max. Operating Mass | 860 kg |
Transport Mass | 360 kg |
Overall (LxWxH) | 2112 x 832 x 1344 mm |
Transport Dimensions (LxWxH) | 1480 x 832 x 1344 mm |
Pump | Tandem gear pump (4cc x2) 3600rpm |
Motor | Disc distribution cycloid motor (x2) |
Working Pressure | Max. 180 bar |
Hydraulic Flow | 28.8 L |
Motor Torque | 645 Nm each at 180 bar |
Driving | Hydraulic |
Steering | Fully hydraulic / control valve |
Forward | 3.2 km/h |
Reverse | 3.2 km/h |
Gradeability | 15 degrees |
Ground Clearance | 71 mm |
Engine Model | BTIGGS STRATTON XR950 |
Emission Accordance | EPA |
Rated Power | 6.5 HP / 3600rpm |
Displacement | 208 cc |
Cylinder x Stroke | 68.3 x 55.9 mm |
Fuel Tank Volume | 3.1 L |
Oil Volume | 0.6 L |
Net Weight | 16 Kg |
Startup | Reversing & E-starter |
Hopper Volume | 270 L |
![]() |

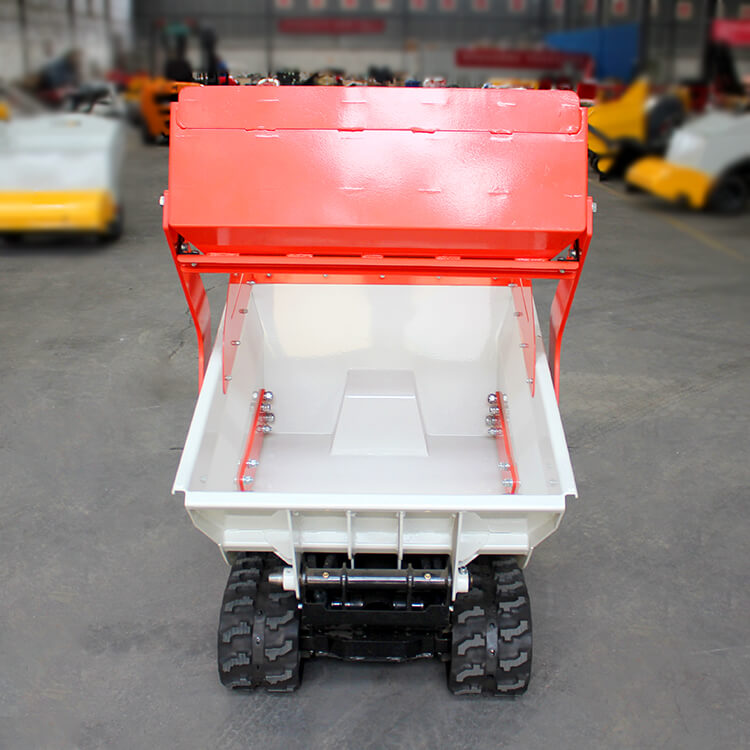

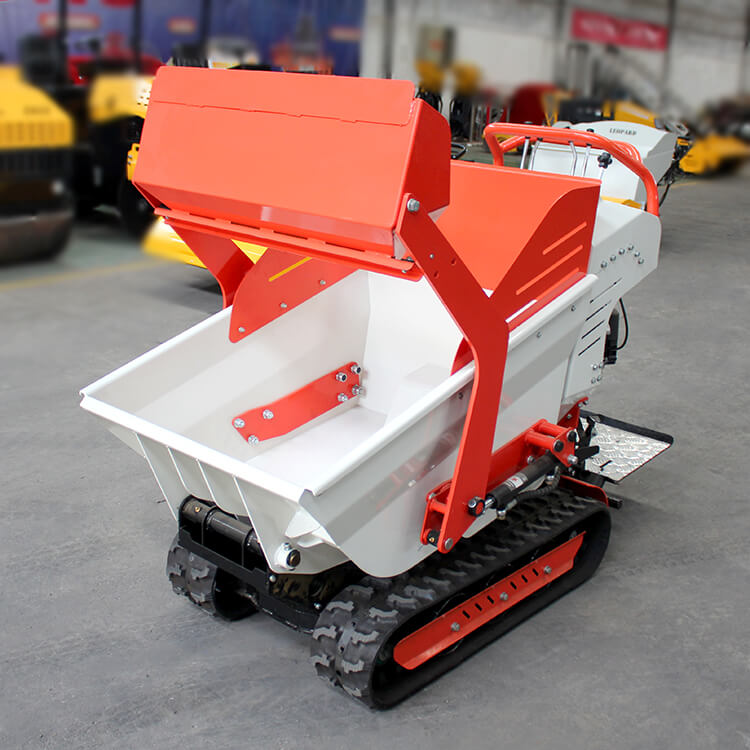

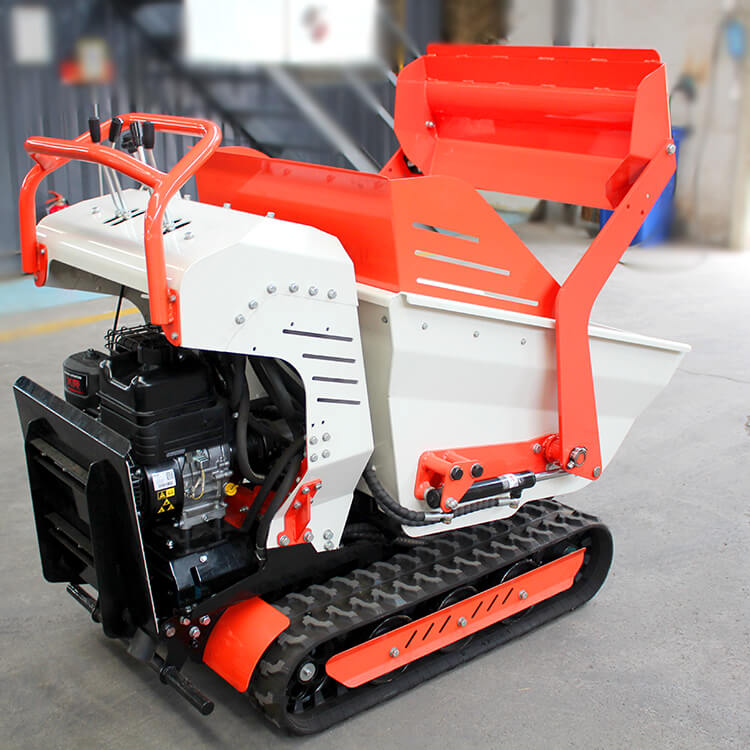

360kg Mini Dumper CE Certification Hydraulic Crawler for Machine Weight Images |
